Marquee Graphic Change Out
Open both end caps . If you’re changing from a previous design, remove that previous graphic. (you can, in fact keep as many as 3 inserts stored in the Marquee at any time) Square up the insert to the ends. Close both end caps. You’re done!
MARQUEE INSTALLATION
The Marquee is not just a theatre looking simple, easily changed graphic frame, providing a natural unavoidable message. It’s also easily installed:

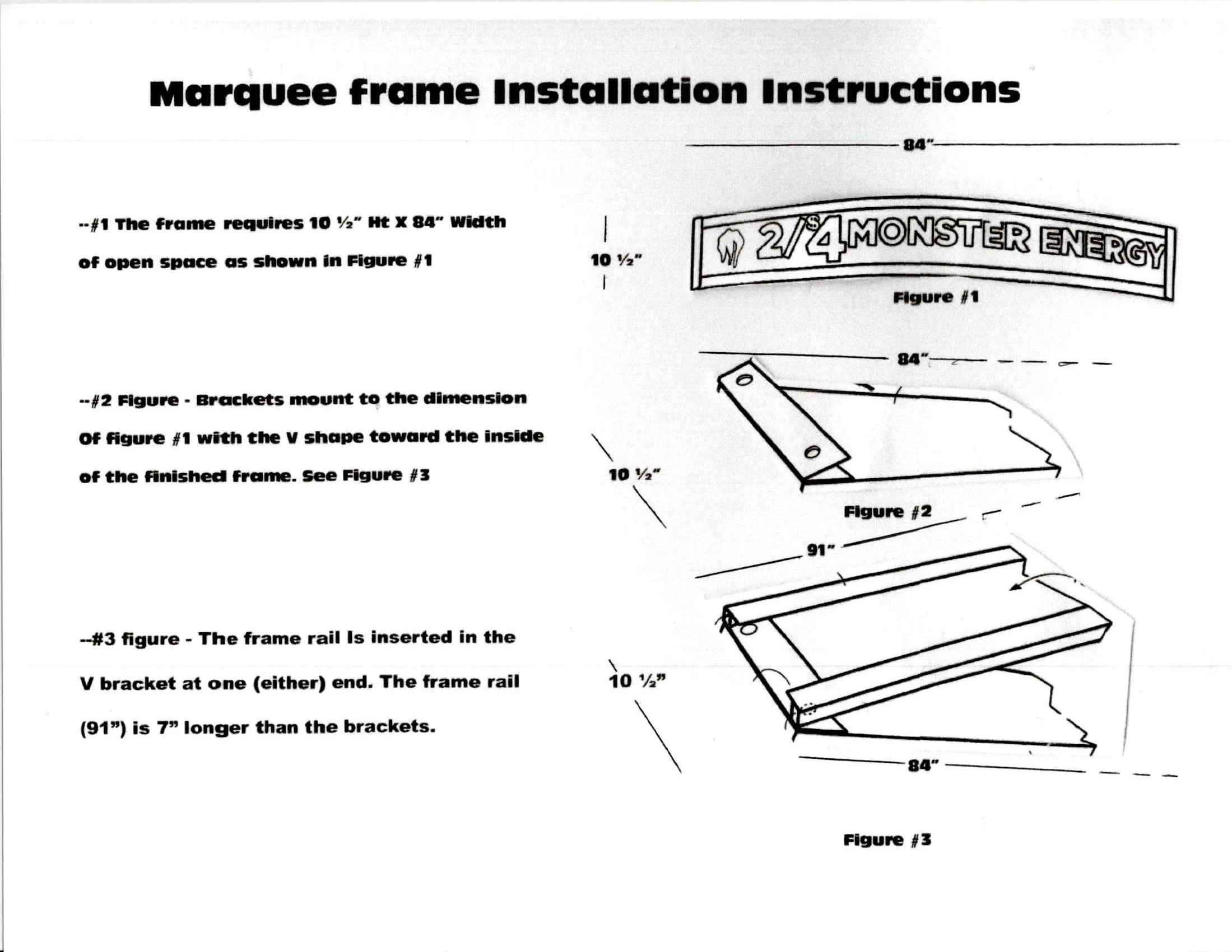

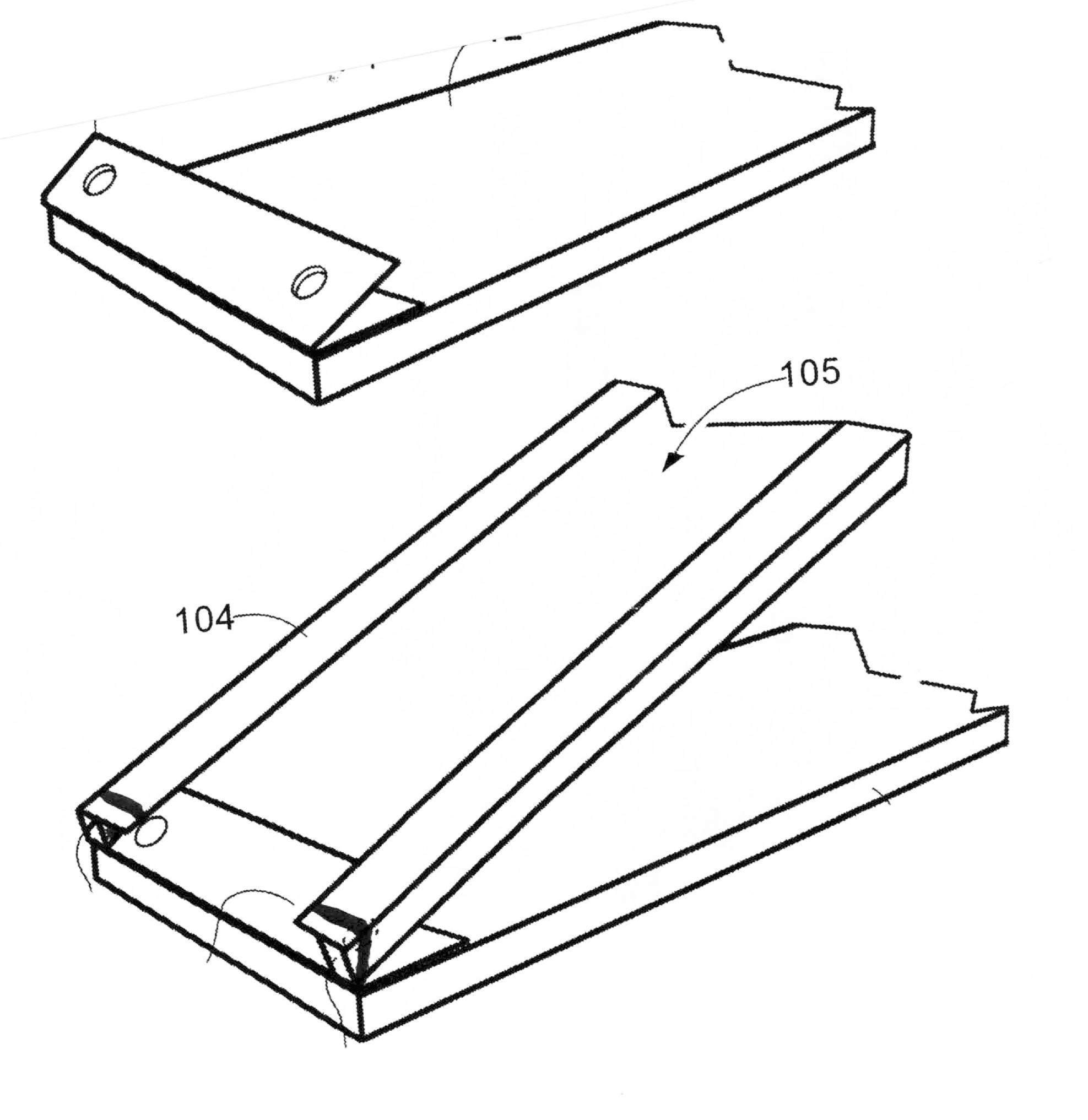

Mount the 2 - 30 degree v shaped metal brackets at 84” to the outside (bent) edges. Note this will establish the end of the frame. (See Figure #1)

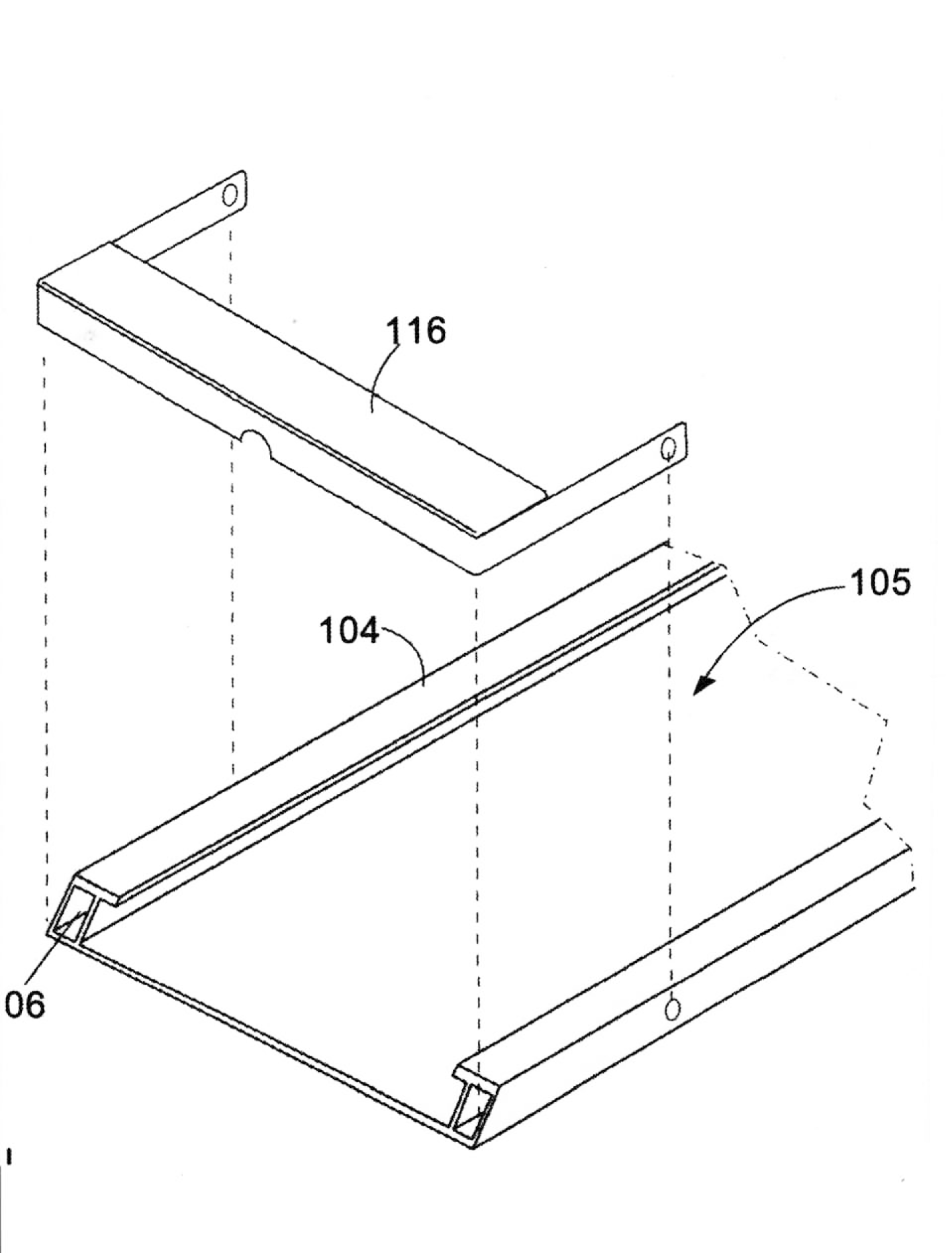

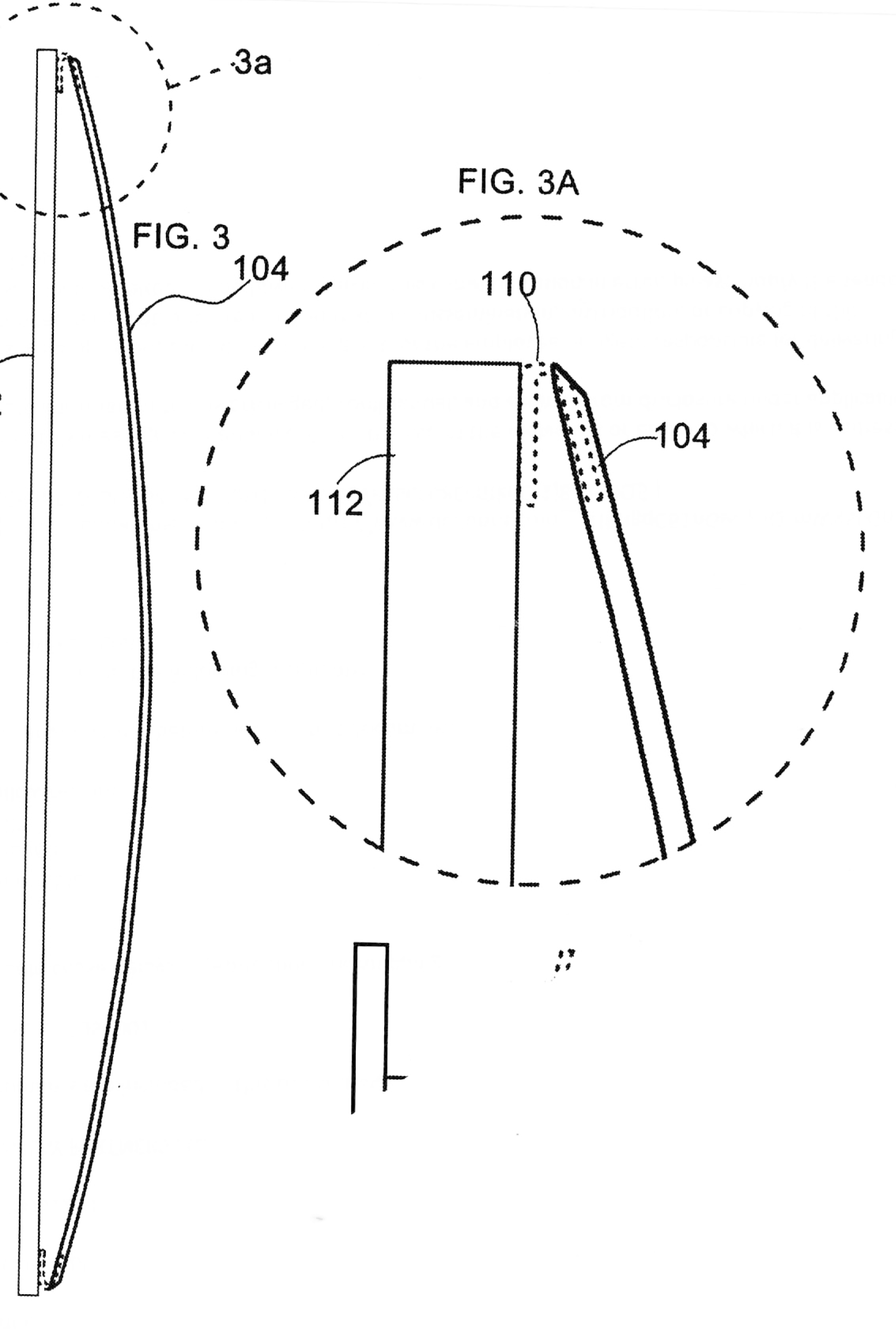

Take the 90” long frame. squeeze it down horizontally to fit into the metal bracket (note you will to squeeze the 2nd side down to approximately 80” to fit the 2nd or last side. (See Figure #2) Mount the hinged end caps to both ends of the frame. (See Figure #3)
RTS MARQUEE INSTALLATION
